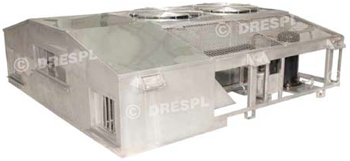

Roof Mounted AC Package Unit ( For Passenger Coaches DR200004003 )



Roof Mounted AC Package maintains the temperature and humidity to the comfort level inside the air conditioned coaches of passenger trains. This type of unit have various advantages over other types of air conditioners::



  • These are very maintenance and installation friendly to save time.



  • Structure is made of Stainless Steel 304 Grade, which protects it against odd whether conditiones.



  • Scroll compressors are used for prolong life of air conditioner.

  • Electronic Thermostat is used for precise temperature control.

  • Control panel is mounted inside the coach.

  • Easy approach for regular maintenance from inside the coach.

  • Condensor and blower motors are IP56 protected.

  • Heat Exchangers are made of copper tube and copper fins with tin platted corrosion treatment.






Technical Details

Cooling Capacity

21,000 kilo Calories per hour

Heating Capacity

6 kW

Power Source

415 V AC - 3 Phase - 50 Hz

Control Circuit

110 V AC - 1 Phase - 50 Hz

Air Flow Rate

4000 CMH

Refrigerant

R - 22 / R - 407C

Compressor

Hermetically Sealed (2 per
unit) Scroll

Dimension (mm)

L - 2145, W - 2100, H - 660

Weight

650 kg (approx.)

Structure

304 Stainless Steel Construction
