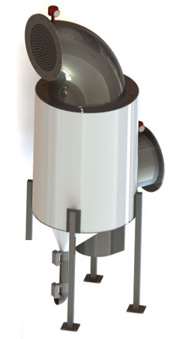

In-Line Self- Cleaning Filters

Daulat Ram Engineering Services (p) Ltd. provides a wide range of in line self cleaning filters that are designed for ease of operation and maintenance. These filters are designed to increase the efficiency of production lines. They filter contaminated and oversized lumps (up to 15 microns) from liquid products with an industrial self cleaning strainer.

Self cleaning feature enables the filters to increase production rates by largely reducing maintenance time. Hence, time and effort required to change strainer elements or slowing down of throughputs due to blockages are eliminated.

Available in a range of different models, these self cleaning strainer models can easily be adapted to fit anywhere into your production line, improving sieving efficiency and accessibility for the operator.

Range of models:

Description	Unit	Dimension Detail
Inlet/Outlet pipe diameter	mm	300	350	400	450	500	600	700	900	1000	1200	1500
Maximum flow	Lt/sec	177	241	314	398	491	707	1105	1592	1965	2830	4421
Shell diameter	mm	650	700	800	850	1050	1200	1600	1750	2000	2300	2850
Filter mesh(up to 50 micron) cage diameter	mm	450	500	600	650	750	900	1200	1350	1500	1800	2250
Filter mesh cage height	mm	675	750	900	975	1125	1350	1800	2025	2250	2700	3375
Filter area	sqm	0.95	1.18	1.7	1.99	2.65	3.82	6.78	8.58	10.6	15.26	23.84
Drain pipe diameter	mm	80	80	100	100	100	100	100	100	100	100	100

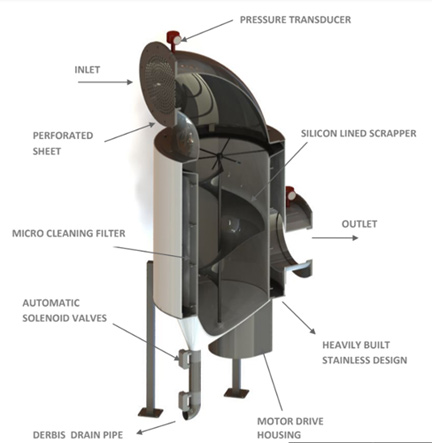

These filters are provided with pre filtration perforated filter for removal of oversized particles from the inlet for better operation. Spring loaded silicon lined scrapper eliminates the need for bags which in turn, reduces ongoing costs and is environmental friendly.

The system is provided with pressure actuated automatic solenoid valves for timely removal of collected debris from drain pipe. Pressure transducers are also provided for proper monitoring of the system in working condition.

These self cleaning filters are equipped with flange joints for easy removal of inside filter and scrapper which in turn reduces the maintenance time by facilitating the operator with easy removal of components.

The overall system is heavily built with stainless steel design for elimination of any oxidation and the structure is completely enclosed with water sealed joints minimizing product contamination and safeguarding the health and safety of operators from hazardous fumes or liquids.
