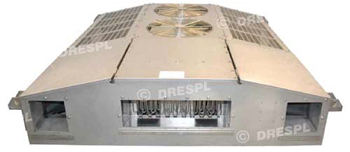

Roof Mounted AC Package Unit
( For LHB Type Passenger Coaches DR200004001 ) |
| |
Roof Mounted AC Package maintains the
temperature and humidity to the comfort level
inside the air conditioned coaches of passenger
trains. This type of unit has various advantages
over other types of air conditioners:
- These are very maintenance and installation
friendly to save time.
- Structure is made of Stainless Steel 304
Grade, which protects it against odd whether
conditiones.
- Scroll compressors are used for prolong life of
air conditioner.
- Microprocessor based control system for
precise temperature control.
- Condenser and Blower motors are IP56
protected.
|
| |
| |
|
Technical Details |
Cooling Capacity |
21,000 kilo Calories per hour |
Heating Capacity |
6 kW |
Power Source |
415 V AC - 3 Phase - 50 Hz |
Control Circuit |
110 V DC
Microprocessor Based Control |
Air Flow Rate |
4000 CMH |
Refrigerant |
R - 22 / R - 407C |
Compressor |
Hermetically Sealed (2 per
unit) Scroll |
Dimension (mm) |
L - 2220, W - 2180, H - 500 |
Weight |
603 kg (approx.) |
Structure |
304 Stainless Steel Construction |
|
|
|
| |
|
 |
|
|
