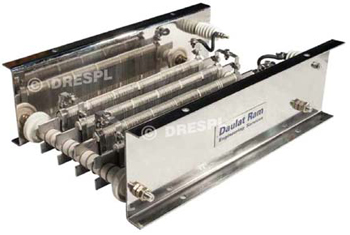

Pre-charge Resistor ( For WAP-7 / WAG-9 3 Phase Locomotive DU120108003 replaceable with ABB*** Part No. 3EHN424095P1250 )



It is part of the Power circuit of the Traction Convertor.

During powering up of the convertor, charging contactor is closed, so that the convertor DC link is pre-charged through the charging resistor and the diodes in the Valve Set.




Technical Details of DU120108003

Peak Surge Current

50 A

Voltage

1517 VAC rms

Grid Resistance @ 20oC

50 Ω ± 10%

Power Rating

150 kWs
