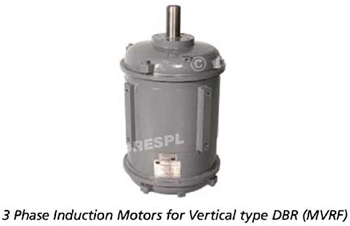

3 Phase Induction Motor For Vertical Type DBR
( MVRF ) |
| |
This 3 phase induction motors is used for driving
the axial blowers of the Vertical type Dynamic
Brake Systems. |
|
Technical Details |
Power |
35 kW |
Voltage |
415 V ± 5% |
Current |
61 A |
| Speed |
2950 rpm |
Frequency |
50 Hz |
|
| |
| |

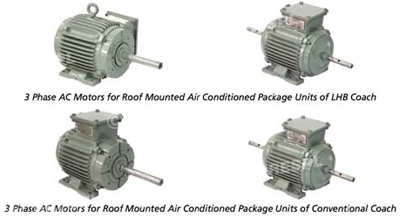

3 Phase Induction Motors for Roof Mounted AC Package Units
AG80M4B34, AG90SL4B3 (LHB Coach)
AG90SL6B34, AG90SL4B3 (Conventional Coach)
|
| |
These 3 phase induction motors are used for driving
the refrigerant condenser fans and evaporator
blower fans in LHB as well as conventional type
Roof Mounted Air Conditioned Package Units.
The motors used for LHB type of Roof Mounted
Air Conditioned Package Units are with thermal
overload protector.
Technical Details
Condenser
Blower Motor
Evaporator
Blower Motor
Part |
| |
 |
|
Technical Details |
| |
Condenser
Blower Motor |
Evaporator
Blower Motor |
Part No. |
AG80M4B34 |
AG90SL4B3 |
Power |
0.75 kW |
1.1 kW |
Voltage |
415 V ± 10% |
415 V ± 10% |
Current |
2 A |
2.4 A |
| Speed |
1415 rpm |
1447 rpm |
Frequency |
50 Hz |
50 Hz |
Technical Details |
|
Condenser
Blower Motor |
Evaporator
Blower Motor |
Part No. |
AG90SL6B34 |
AG90SL4B3 |
Power |
0.75 kW |
1.1 kW |
Voltage |
415 V ± 10% |
415 V ± 10% |
Current |
2 A |
2.4 A |
Speed |
965 rpm |
1447 rpm |
Frequency |
50 Hz |
50 Hz |
|
| |
 |
|
