DIESEL ELECTRIC LOCOMOTIVEHIGH CAPACITY RESISTORS

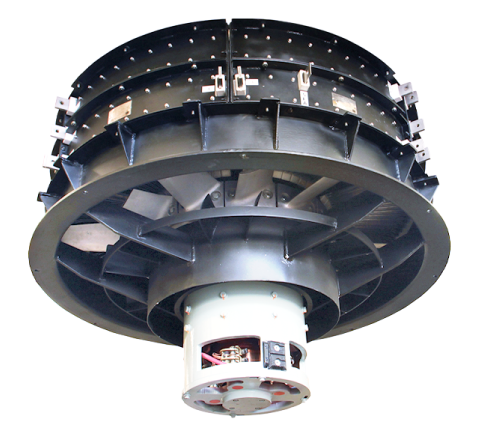

Radial Grid Dynamic Brake Assembly
6 Axle Radial Grid Assembly DR129903001
The Radial Dynamic Braking Resistors complete with Blower Motor set are required to control the speed of the train on a continuous down gradient as well as on level section.
View Full Details

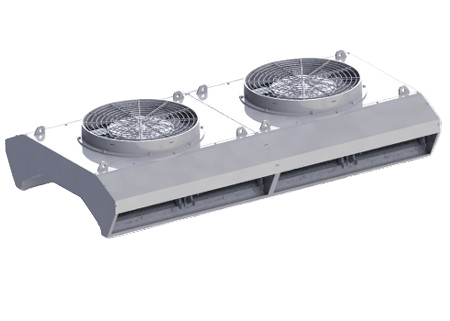

Dynamic Brake Hatch Assembly
For WDG4/WDP4 EMD*** locomotives DU100101010
The Dynamic Brake Hatch assembly is mounted in the long hood frame of the EMD Locomotives manufactured by Indian Railways, which consists of a eight grid resistor boxes, two blowers powered by two direct current series motors, cable assemblies and other accessories.

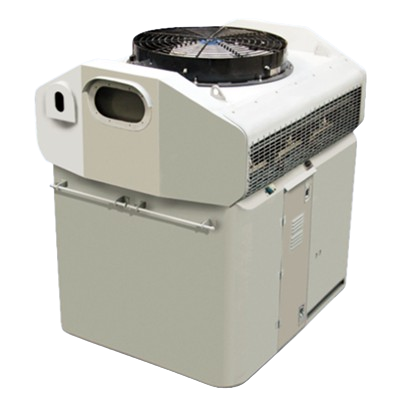

View Full DetailsForced Cooled Roof Mounted DBR with Short Hood
For WDM3D/WDG3A Alco Type Locomotive DU100102004
The system is 6x361 kW Forced Cooled Dynamic Brake System and consists of Six Nos. of Grid Resistors mounted on the Short Hood structure and a complete Blower Motor Assembly.
View Full Details
Inverter Protection Resistor
DU120117006
Power parts with in the Inverter can be damaged as a result of over voltages, power supply failures, or other faults. Therefore, an extensive protection system should be there to reduce the likelihood of damage to the inverter. For this reasons, Each Thyristor Control Cabinet (TCC) is provided with a built in protection system called IPS (Inverter Protection System).

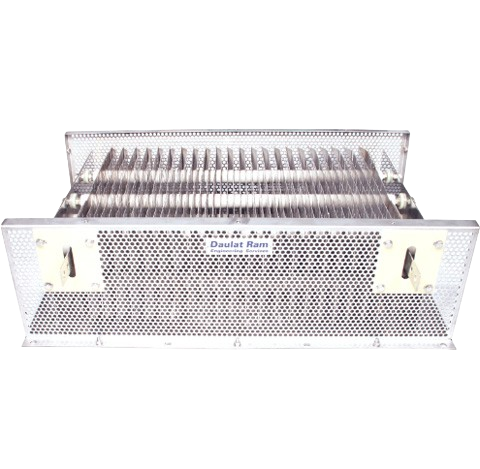

View Full DetailsCrowbar Resistor
DU120116005
The purpose of the IPR ( Inverter Protection Resistor) is to dispose of DC link energy more gracefully in the event of a soft crowbar, firing incident. One Resistor per Thyristor Control Cabinet is required. For TCC-1, the IPR is mounted on its long hood side outside wall which is actually an inside wall for the Main Generator room.
View Full Details
