DIESEL ELECTRIC LOCOMOTIVEAIR CONDITIONING

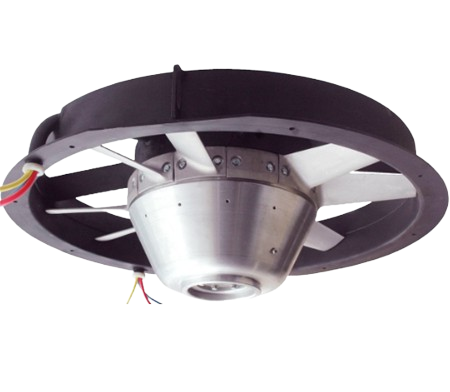

54'' Radiator Cooling Fan
For WDG-4/ WDP-4 Diesel Electric Locomotive DR120005003
In the existing 4000/4500 HP EMD Locomotives manufactured by Indian Railways, water act as a coolant. The water temperature is controlled by means of radiator banks and AC motor driven cooling fans.
View Full Details

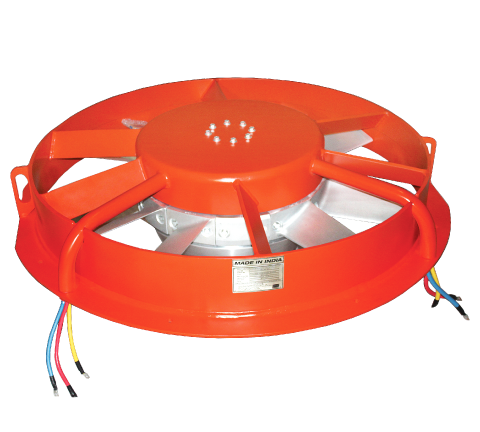

52'' Radiator Cooling Fan
For WDG-4/ WDP-4 Diesel Electric Locomotive DR120006001
Radiator Cooling Fan 52'' are used in the existing 4000HP EMD Locomotives manufactured by Indian Railway, where water act as a coolant. The water temperature is controlled by means of radiator banks and AC motor driven cooling fans.
View Full Details48'' Radiator Cooling Fan
DR120064049
Radiator Cooling Fan 48'' are used where low decibel levels are required. This fan comes in single as well as double speed designs with variable blade combinations to achieve required air quantity and decibel levels.
View Full Details

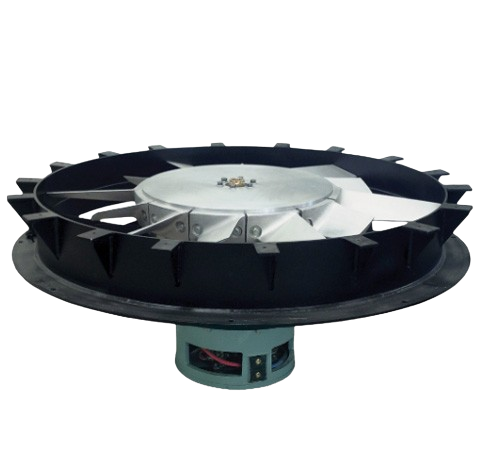

54'' Dynamic Brake Cooling Fan
100 HP DC Motor and Blower Assembly DR120003002
The dynamic brake grid cooling fan assemblies consist of a fan powered by a direct current series motor.
View Full Details52'' Dynamic Brake Cooling Fan
36 HP DC Motor and Blower Assembly DR120002001
The dynamic brake grid cooling fan assemblies consist of a fan powered by a direct current series motor.
View Full Details

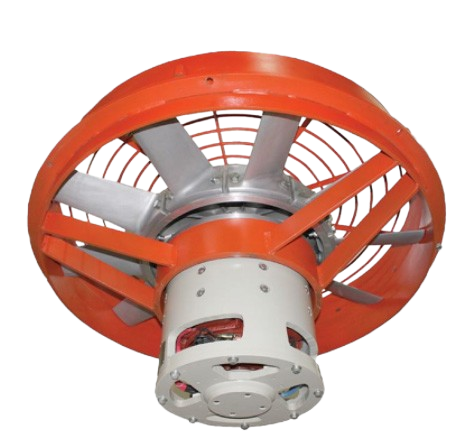

48'' Dynamic Brake Cooling Fan
36 HP DC Motor and Blower Assembly DR120002006
The dynamic brake grid cooling fan assemblies consist of a fan powered by a direct current series motor.

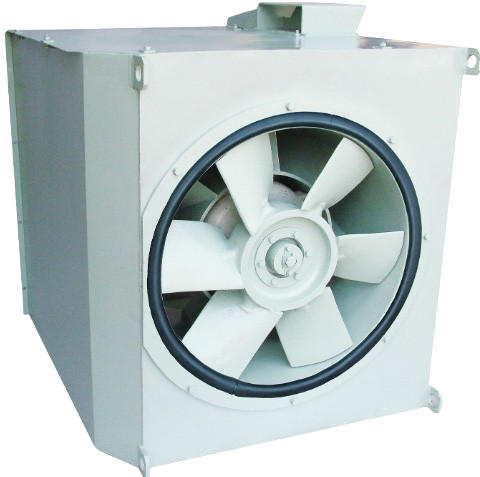

View Full DetailsTransformer & Converter Oil Cooling Unit
DR120008001
Oil Cooling System is used for removing the heat due to energy loss from the transformer oil cooling circuits, the choke and the inverter. Oil Cooling System is used in WAG9, WAP7 & WAP5 class of locomotives manufactured by Chittaranjan Locomotive Works, India. Two such units are used per locomotive.
View Full Details

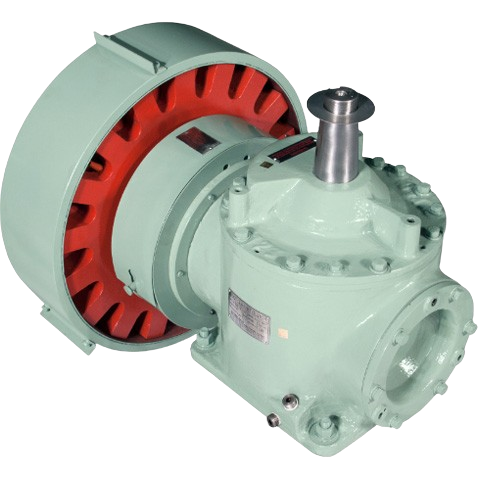

Eddy Current Clutch
DR130016007
A radiator fan is used on diesel electric locomotives to bring down the temperature of the diesel engine cooling water. Drive between the engine and radiator fan consists of an Eddy Current Clutch type DR54/01AZ which controls the fan speed and gear box with gear ratio 1:1.312, which provides mechanical coupling between clutch and fan.

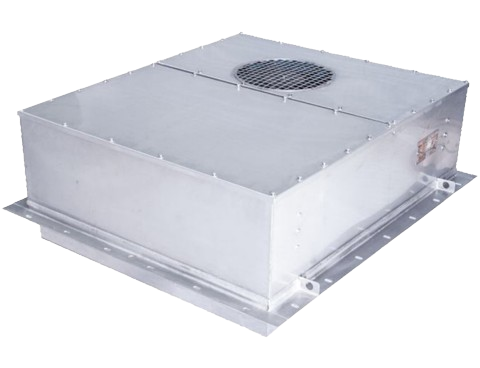

View Full DetailsAC Built In Inverter for Drive Cab
For Locomotive Driver Cabin of WDG4/WDP4 Locomotives DR210006002
Roof Mounted AC Package maintains the temperature and humidity to the comfort level inside the air conditioned driver cabin of the Diesel Electric Locomotives.
View Full Details
