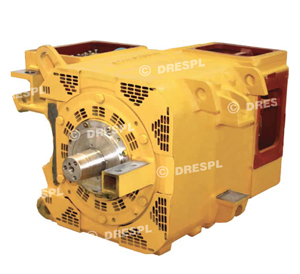

High Power to Weight DC Traction Motor ( DR50/01AZ )



Traction Motor Type DR50/01AZ is a series wound, four pole, forced ventilated DC motor, with high power to weight ratio, developed for use on Broad Gauge Diesel Electric Locomotives. The motor has the following special features:

Low unsprung mass enabling high locomotive speeds.

Nose suspension with axle roller bearing drive.

Arch bound commutator, dynamically seasoned, with L-shaped Teflon ring protection.

Heat sealed KAPTON covered armature conductors.

TIG welded armature.

Polyimide film (kapton), and PTFE tape based insulation for armature and field coils.

Main field and compole coils bonded with poles for improved heat dissipation.

VPI of armature and field coils in solventless polyesterimide resin (Class 200) to obtain void
free insulation.

Terminal box on motor facilitating connections with external circuitry.

Reaction type brush holders for better stability and improved commutation.

Fluonlex cables for brush gear cross connections and brush gear to field connections.

Additional support for gearcase mounting.



Technical Details

DR PART NO.

DR50/01AZ

Technical
Details

Continuous Rating

One Hour Rating

Maximum Rating

Power (kW)

282

269



Voltage (V)

350

325

1100

Current (A)

925

950

1400

Speed (rpm)

444

406

2231



Insulation Class

Modified Class 200

Continuous TE (kg)

4250

Efficiency

89.2%

Ventilation

Forced

Air Quantity

65 cu.m/min at 93 mmWG

Gear Ratio

18:65

Standard Applicable

IEC 60349-1:2002

Weight with Accessories:

3250 kg

kW / Weight Ratio

16% higher than traction motor for similar application
