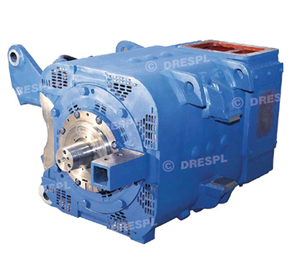

High Adhesion DC Traction Motor ( DR49/02AZ replaceable with GE*752 )



Traction Motor Type DR49/02AZ is a series wound, four pole, forced ventilated DC motor with axle roller bearing drive and suspension, specially developed for Broad Gauge, High Speed, Diesel Electric Locomotives. Some of the salient features are:

Suitable for high adhesion with gear ratios available for both passenger and goods service.

Fully fabricated or cast-cum-fabricated magnet frame.

Axle Roller Bearing drive.

Arch bound commutator, dynamically seasoned, with L-shaped Teflon ring protection.

TIG welded armature with 100% equalization.

Polyimide film (kapton), mica paper and PTFE tape based insulation for armature and field coils.

Main field and compole coils bonded with poles for improved heat dissipation.

VPI of armature and field coils in solventless polyesterimide resin (Class 200) to obtain void free insulation.

Armature assembly with sealed bearing arrangement.

Use of oil-resistant cables for motor connecting leads.

Additional support for gearcase mounting.




Technical Details

DR PART NO.

DR49/02AZ


Technical
Details

Continuous Rating

One Hour Rating

Maximum Rating

Power (kW)

280

278



Voltage (V)

325

305

1100

Current (A)

1000

1060

1400

Speed (rpm)

430

395

2262



Insulation Class

Modified Class 200

Continuous TE (kg)

5100 (G R 18:74)
4480 (G R 18:65)

Efficiency

88%

Ventilation

Forced

Air Quantity

65 cu.m/min at 100 mmWG

Gear Ratio

18:74 / 18:65

Standard Applicable

IEC 60349-1:2002

Weight with Accessories:

3680 kg
