Traction Alternators



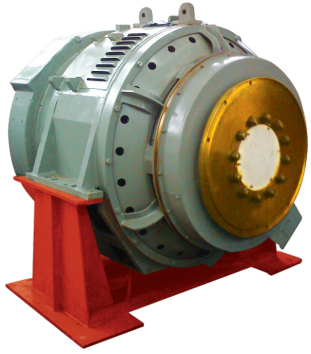

DR99/17AZ

Replaceable with EMD** Part No. TA17 CA6

Technical Details

Main Alternator

Cont. Rating

2600 Volts, 1380 Amps, 900 RPM, Freq. 75 Hz

Max. Rating

2200 Volt AC, 3000 Volts DC, 900 RPM

Current

1600 Amp AC, 2100 Amp DC, 900 RPM



Companion Alternator

Cont. Rating

240 Volts, 900 RPM, Freq. -127 Hz



Rectifier 1200 Amps DC

Max. Reverse

2200 Volts Peak, 2800 Volts Non Peak, 2800 kW



DR101/03AZ

Replaceable with GTA17PB1

Technical Details

HV Cont.

LV Cont.

Power (kW)



2083

2106

Voltage (V)



1075

585

Current (A)



1938

3600

Speed (rpm)



1050

1050

Weight (kgs.)

6507

-

Conforms to IEC 60349

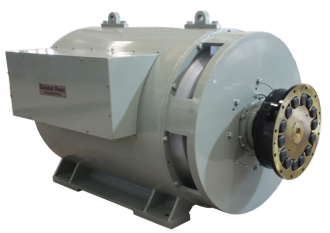

DR70/10AZ

for DEMU & Power Car Application

Technical Details

HV Cont.

LV Cont.

Power (kW)



1350

1350

Voltage (V)



1100

450

Current (A)



1227

3000

Speed (rpm)



1800

1800

Weight (kgs.)

4040

-

Conforms to IEC 60349

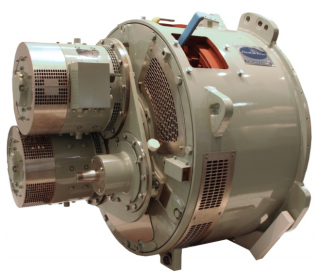

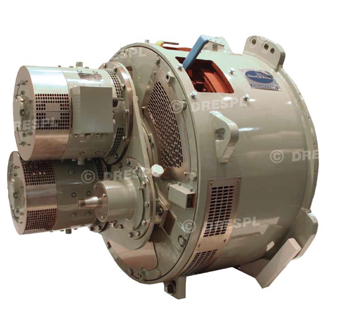

Traction Alternator ( DR101/03AZ replaceable with GTA17PB1 )

Traction Alternator DR101/03AZ meets the requirements of high horse power Diesel-Electric Locomotives of up to 3300 HP capacity, such as those of Indian Railways. This Alternator is suitable for rotational speeds up to 1100 RPM. This Traction Alternator is a salient pole, 3-phase star connected, separately excited, single bearing machine, directly coupled to Diesel Engine. Auxiliary Generator and Exciter mounted on the gearbox of the Alternator are gear driven, besides catering for Loco control system power and Alternator field excitation requirements respectively, act in tandem to crank Diesel Engine. Power Take Off Unit, also mounted on the Alternator gearbox, drives blower unit for providing cooling air to the traction motors. Some of the special features of the Alternator are:



  • VPI of stator winding and rotor field coils in solvent less resin of Class 200, to ensure void free insulation.



  • Brazed connections of joints of the stator winding.



  • Self ventilation with its own fan, thereby no need of external source of cooling air.

  • Alternator R, Y, B leads terminating in a terminal box, to facilitate connections with the rectifier.






Technical Details

DR PART NO.

DR101/03AZ


Technical Details

HV Continuous

LV Continuous

Power (kW)

2083

2106

Voltage (V)

1075

585

Current (A)

1938

3600

Speed (rpm)

1050

1050

Weight (kg)

6507

-
