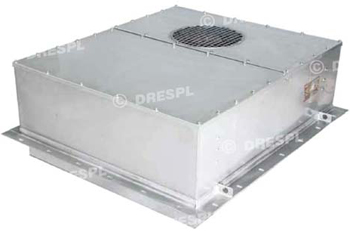

Air Conditioner With Built-In Inverter ( For Locomotive Driver Cabin of WDG4/WDP4 Locomotives DR210006002 )



Roof Mounted AC Package maintains the temperature and humidity to the comfort level inside the air conditioned driver cabin of the Diesel Electric Locomotives. This type of unit has various advantages over other types of air conditioners:



  • These are very maintenance and installation friendly to save time.



  • Structure is made of Stainless Steel 304 Grade, which protects it against odd whether conditiones.



  • Scroll compressor is used for prolong life of air conditioner.

  • Control panel and other circuitary is built into the air conditioner. That saves space inside the cabin.

  • Condenser and blower motors are IP56 protected.

  • Heat Exchangers are made of corrosion resitance treated aluminium.

  • Built in inverter is provided that enables operation with 74 VDC power supply.

  • Very low noise level.






Technical Details

Cooling Capacity

5300 kilo Calories per hour

Heating Capacity

3 kW

Power Source

74 VDC

Inverter

Inbuilt

Air Flow Rate

1200 CMH

Refrigerant

R - 134a

Compressor

Hermetically Sealed Scroll

Dimension (mm)

L - 1265, W - 1120, H - 465
(with mounting flange)

Weight

175 kg (approx.)

Structure

304 Stainless Steel Construction
