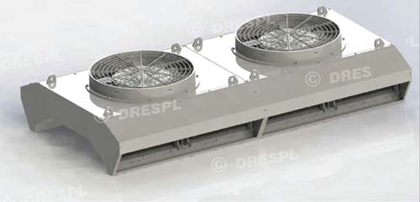

Dynamic Brake Hatch Assembly ( WDG4/WDP4 EMD** Locomotives DU100101010 )



The Dynamic Brake Hatch assembly is mounted in the long hood frame of the EMD Locomotives manufactured by Indian Railways, which consists of a eight grid resistor boxes, two blowers powered by two direct current series motors, cable assemblies and other accessories.

The Dynamic Brake is used to control the speed of the train on a continuous down gradient as well as on level section. When the locomotive is operating in dynamic braking, the traction motors operates as generators. The electrical power generated by the traction motor is converted into heat in braking grids. This heat is dissipated into the atmosphere by the dynamic brake fan and motor assembly.

The Dynamic Brake grid motor is powered by a portion of the electricity generated by the traction motors during dynamic braking operation.




Technical Details

Nominal Power

36 HP

Speed

1650 RPM

Voltage

300 V

Current

118 A

Description

EMD**
& Other
Ref. Part
No.

DR Part No.

Dynamic Brake
Hatch Assembly

10631909

DU100101010

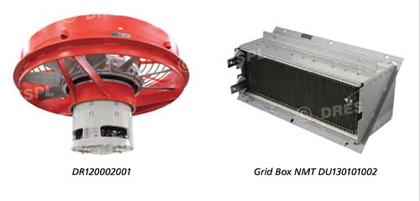

Dynamic Brake Fan
Assembly

9518890

DR120002001

Dynamic Brake
Motor

280144

DR120002002

Grid Box NMT

10634215

DU130101002

Grid Box MT

10634216

DU130101001

Blower

9518889

DR124002001
