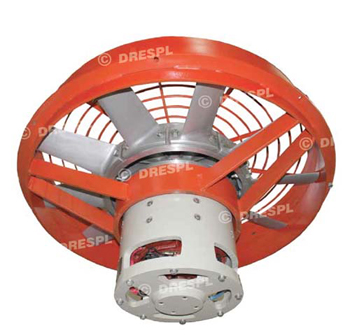

48" Dynamic Brake Cooling Fan ( 36 HP DC Motor And Blower Assembly DR120002001 )



The dyanmic brake grid cooling fan assemblies consist of a fan powered by a direct current series motor. Fan and motor assembly consist of five major components:

Armature Assembly

Frame and Field Coil Assembly

End Frame and Brush Rigging Assembly

End Frame and Stator Assembly

Fan Rotor Assembly

The grid fans motor is Class H insulated. It is designed for ceiling mounting in the grid hatch assembly and has the fan rotor assembly bolted to the fan mounting hub.

The grid cooling fan assemblies are identical with the exceptions of changes in the fan, stator end frame, and motor leas arrangements.



Technical Details

Rating

36 HP

Voltage

300 V

Current

118 A

RPM

1650

Description

Ref Part
No.

DR Part No.

Dynamic Brake
Grid Fan

9518890

DR120002001

Dynamic Brake
Grid Motor

280144
4A8132

DR120002002

Fan (48”)

9518889

DR124002001
