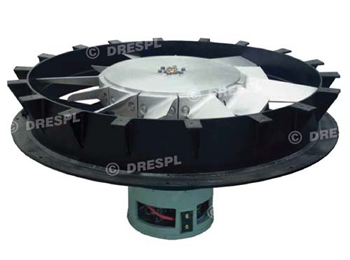

54" Dynamic Brake Cooling Fan ( 100 HP DC Motor And Blower Assembly DR120003002 )



The dyanmic brake grid cooling fan assemblies consist of a fan powered by a direct current series motor. Fan and motor assembly consist of five major components:

Armature Assembly

Frame and Field Coil Assembly

End Frame and Brush Rigging Assembly

End Frame and Stator Assembly

Fan Rotor Assembly

The grid fans motor is Class H insulated. It is designed for ceiling mounting in the grid hatch assembly and has the fan rotor assembly bolted to the fan mounting hub.

The grid cooling fan assemblies are identical with the exceptions of changes in the fan, stator end frame, and motor leas arrangements.



Technical Details of DR120003002

Rating

100 HP

Voltage

450 V

Current

195 A

RPM

2000

Description

Ref Part
No.

DR Part No.

Dynamic Brake
Grid Fan

2808505
40067679

DR120003002

Dynamic Brake
Grid Fan

2809805

DR120003010

Dynamic Brake
Grid Motor

2803364
A8592

DR120003001
