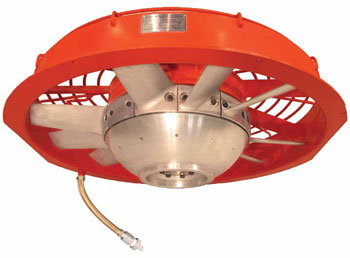

48" Radiator Cooling Fan ( DR120064001 )



Radiator Cooling Fan 48" are used where low decibel levels are required. This fan comes in single as well as double speed designs with variable blade combinations to achieve required air quantity and decibel levels.

Radiator Cooling Fan 48" are of inverted squirrel cage, single/dual speed, single winding, 3-phase induction machines and are an integral part of the cooling fan assembly. The term "inverted" indicates that these differ from the conventional squirrel cage motor in the way that the rotor is located outside of the stator.

All the aluminum castings meet the quality requirements as per ASTME -155 level 1. All the machines are tested as per IEEE 112A/ IEC 60349, IS:4722-2001 and IS:4029-1967.





Description

EMD**
& Other
Ref. Part
No.

DR Part No.

47 HP, 215 V,
126.7 Hz,
8 Pole, 9 Blade

9522997
2804500

DR120072001

46 HP, 200 V, 120
Hz,
8 Pole, 8 Blade

8310416
S2805871

DR120062024

46 HP, 215 V,
126.7 Hz,
8 Pole, 9 Blade

8379212
S2806031

DR120064001

47 HP, 215 V,
126.7 Hz,
8 Pole, 4 Blade

2809630

DR120073001

46 HP, 200 V, 120
Hz,
8 Pole, 6 Blade

9528718
2811200

DR120074001

40 HP, 480 V, 60
Hz,
4 Pole, 9 Blade

2808863

DR120075001

46 HP, 400 V, 120
Hz, 8 Pole,
8 Blade

2810310

DR120065001

47 HP, 215 V,
126.7 Hz, 8 Pole,
8 Blade

9517833
2808290

DR120066001

46 HP, 400 V, 120
Hz, 8 Pole,
9 Blade

2809970

DR120067001

37.5 / 4.4 HP, 480
V, 60 Hz, 4/8 Pole,
8 Blade

8310416
2806030

DR120068001

24 / 3 HP, 200 V,
120 Hz,
6/16 Pole, 5 Blade

40037007
2808200

DR120069001

24 / 3 HP, 200 V,
120 Hz,
8/16 Pole, 8 Blade

9576052
2809030

DR120070001

37.5 / 4.4 HP, 480
V, 60 Hz, 4/8 Pole,
9 Blade

2810640

DR120071001

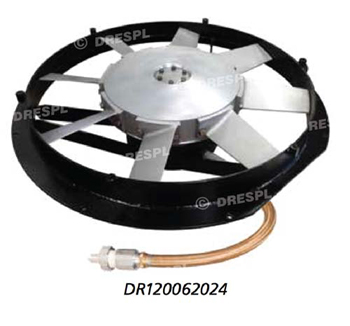

DR120062024
