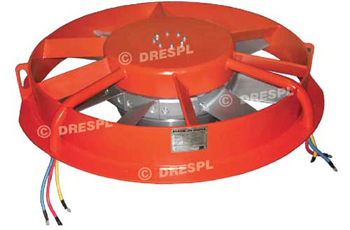

52" Radiator Cooling Fan ( For WDG-4 / WDP-4 Diesel Electric Locomotive DR120006001 replaceable with EMD** Part No.10632019 )



Radiator Cooling Fan 52" are used in the existing 4000 HP EMD Locomotives manufactured by Indian Railways, where water act as a coolant. The water temperature is controlled by means of radiator banks and AC motor driven cooling fans. Radiator Cooling Fan motors used in existing 4000 HP EMD Locomotives manufactured by Indian Railways, are of inverted squirrel cage, dual speed, single winding, 3-phase induction machines and are an integral part of the cooling fan assembly. The term "inverted" indicates that these differ from the conventional squirrel cage motor in the way that the rotor is located outside of the stator. All the aluminum castings meet the quality requirements as per ASTME -155 level 1. All the machines are tested as per IEEE 112A/ IEC 60349 Pt-II, IS:4722-2001 and IS:4029-1967.





Design Operating Points

Minimum Air Flow
(full speed) at an air density of
0.070lb/cu.ft

70,000 CFM

Static Pressure

2.5 in-WG

Fan Speed (rpm)
(2% Slip Permissible)

200 -1800
Syn. Speed

Technical Details



Rating

60 / 7.5 HP

Frequency

26.7 to 120
Hz

Voltage

44 to 200 V

Current 8P, 127 Hz

155 - 165 A

Current 16P, 127 Hz

50 - 55 A

Speed 8P, 127 Hz

1790 rpm

Speed 16P, 127 Hz

895 rpm
