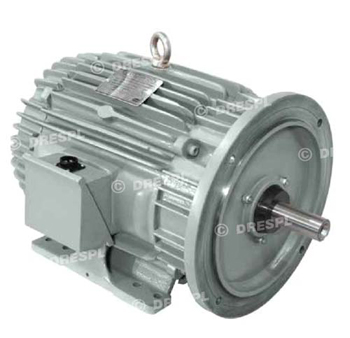

Dust Bin Blower Motor Assembly |
| |
This 3-phase, 4 pole induction motor is used to drive the locomotive inertial filter blowers. This motor is
located at the level of the locomotive underframe. In this application a small percentage of the air drawn
into the locomotive is extracted along with dirt particles. |
| |
7 HP Inertial Blower Motor |
| |
|
Technical Details |
Part No. |
DRESPL/DBBM/160/4 |
Equiv. EMD Pt. No. |
2804094 |
Rating |
7.5 HP |
Voltage |
200 V |
Current |
21.8 A |
Speed |
3575 rpm |
Frequency |
120 Hz |
Duty |
S1 |
|
| |
| |
10 HP Inertial Blower Motor |
| |
|
Technical Details |
Part No. |
DRESPL/IBM/180/4 |
Equiv. EMD Pt. No. |
2803226 |
Rating |
10 HP |
Voltage |
200 V |
Current |
30 A |
Speed |
3570 rpm |
Frequency |
120 Hz |
Duty |
S1 |
|
| |
 |
 |
